ATA

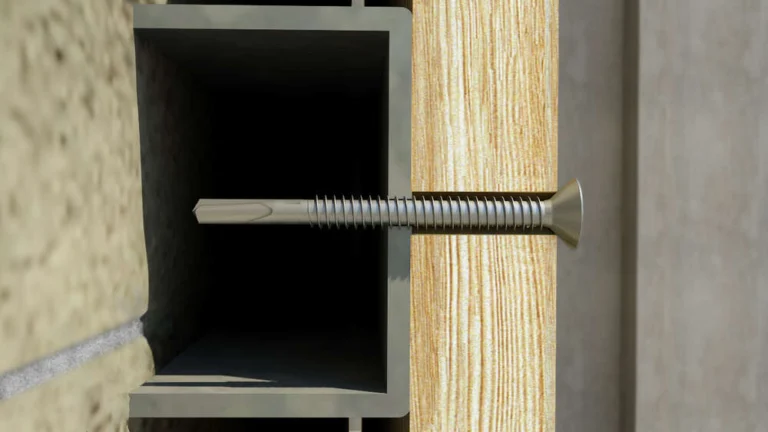

Self-drilling screw with two-wing drill bit, countersunk head and TX drive. It is designed to fix wooden parts to metal profiles. It has a 60º metal thread. The countersunk head allows it to be flush with the surface after installation. It is made of zinc-coated steel.
Body material
Select
Diameter
Select
Length
Select
View all sizes
| Code | Description | Length (mm) | Diameter | Surf. protect | Max. thickness | UOM | No. pcs | Stock | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ATA4832 | Self-drilling screw ATA Zn 4,8x32, footprint: TX25 | 32 | 4,8 | Zn | 16 | 1/C | 500 | Sign up or log in to view availability and prices. | ||
| ATA4838 | Self-drilling screw ATA Zn 4,8x38, footprint: TX25 | 38 | 4,8 | Zn | 22 | 1/C | 500 | Sign up or log in to view availability and prices. | ||
| ATA4845 | Self-drilling screw ATA Zn 4,8x45, footprint: TX25 | 45 | 4,8 | Zn | 29 | 1/C | 500 | Sign up or log in to view availability and prices. | ||
| ATA4850 | Self-drilling screw ATA Zn 4,8x50, footprint: TX25 | 50 | 4,8 | Zn | 34 | 1/C | 500 | Sign up or log in to view availability and prices. | ||
| ATA5538 | Self-drilling screw ATA Zn 5,5x38, footprint: TX25 | 38 | 5,5 | Zn | 19 | 1/C | 500 | Sign up or log in to view availability and prices. | ||
| ATA5545 | Self-drilling screw ATA Zn 5,5x45, footprint: TX25 | 45 | 5,5 | Zn | 26 | 1/C | 500 | Sign up or log in to view availability and prices. | ||
| ATA5550 | Self-drilling screw ATA Zn 5,5x50, footprint: TX25 | 50 | 5,5 | Zn | 31 | 1/C | 500 | Sign up or log in to view availability and prices. | ||
| ATA5555 | Self-drilling screw ATA Zn 5,5x55, footprint: TX25 | 55 | 5,5 | Zn | 36 | 1/C | 500 | Sign up or log in to view availability and prices. | ||
| ATA5565 | Self-drilling screw ATA Zn 5,5x65, footprint: TX25 | 65 | 5,5 | Zn | 46 | 1/C | 500 | Sign up or log in to view availability and prices. | ||
| ATA6350 | Self-drilling screw ATA Zn 6,3x50, footprint: TX30 | 50 | 6,3 | Zn | 30 | 1/C | 500 | Sign up or log in to view availability and prices. | ||
| ATA6360 | Self-drilling screw ATA Zn 6,3x60, footprint: TX30 | 60 | 6,3 | Zn | 40 | 1/C | 250 | Sign up or log in to view availability and prices. | ||
| ATA6370 | Self-drilling screw ATA Zn 6,3x70, footprint: TX30 | 70 | 6,3 | Zn | 50 | 1/C | 250 | Sign up or log in to view availability and prices. | ||
| ATA6385 | Self-drilling screw ATA Zn 6,3x85, footprint: TX30 | 85 | 6,3 | Zn | 65 | 1/C | 250 | Sign up or log in to view availability and prices. | ||
| ATA6310 | Self-drilling screw ATA Zn 6,3x100, footprint: TX30 | 100 | 6,3 | Zn | 80 | 1/C | 250 | Sign up or log in to view availability and prices. |
