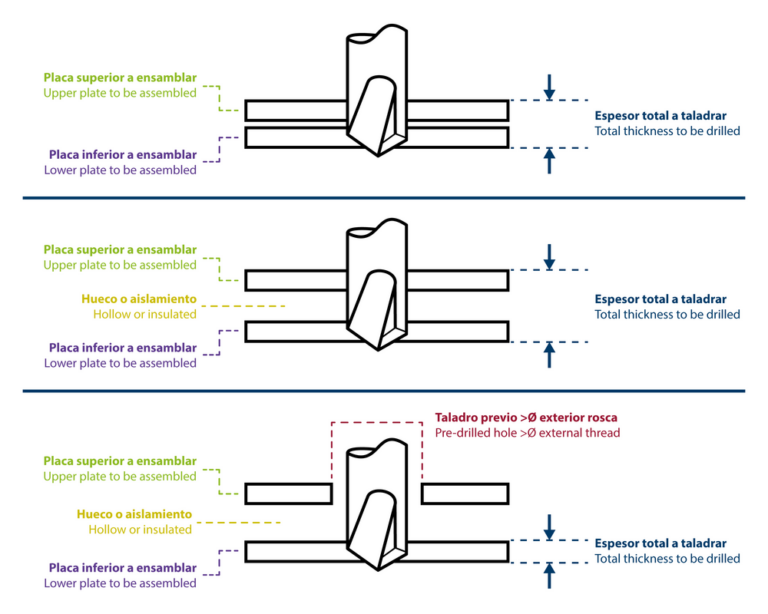

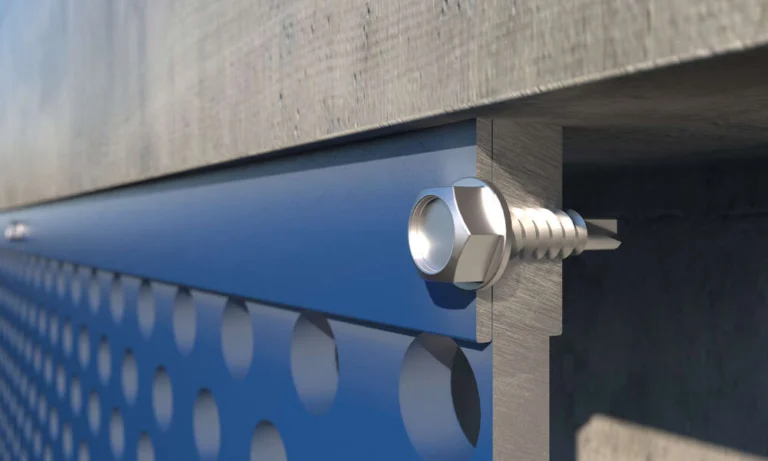

Self-drilling screw for beams, with hexagonal head and stamped washer. Its extra-long drill point allows for the fixing of particularly thick sheets, up to 12 mm. It can be used to attach sheets to IPN beams. It is self-drilling, so no prior drilling is required for installation. It is made of zinc-plated steel.

Body material

Select
Select
Steel

Diameter

Select
Select
5,5

Length

Select
Select
32
38
50
60
80
100

View all sizes

Code Description Length (mm) Diameter Surf. protect Max. thickness UOM No. pcs Stock
AUTO532 Self-drilling screw AUTO Zn 5,5x32, footprint: 8 32 5,5 Zn 21,5 1/C 500 Sign up or log in to view availability and prices.
AUTO538 Self-drilling screw AUTO Zn 5,5x38, footprint: 8 38 5,5 Zn 27,5 1/C 500 Sign up or log in to view availability and prices.
AUTO550 Self-drilling screw AUTO Zn 5,5x50, footprint: 8 50 5,5 Zn 39,5 1/C 500 Sign up or log in to view availability and prices.
AUTO560 Self-drilling screw AUTO Zn 5,5x60, footprint: 8 60 5,5 Zn 49,5 1/C 250 Sign up or log in to view availability and prices.
AUTO580 Self-drilling screw AUTO Zn 5,5x80, footprint: 8 80 5,5 Zn 67 1/C 250 Sign up or log in to view availability and prices.
AUTO510 Self-drilling screw AUTO Zn 5,5x100, footprint: 8 100 5,5 Zn 80 1/C 100 Sign up or log in to view availability and prices.
