Bolt anchor MTP

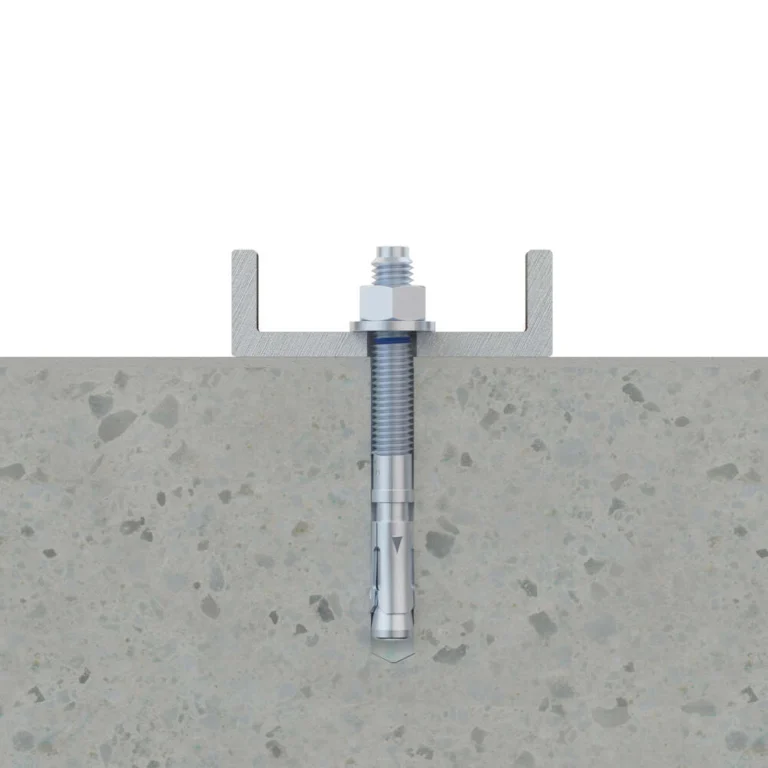

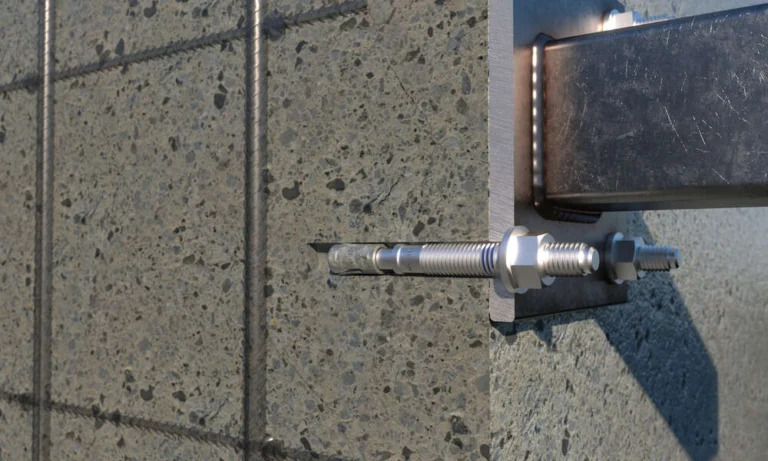

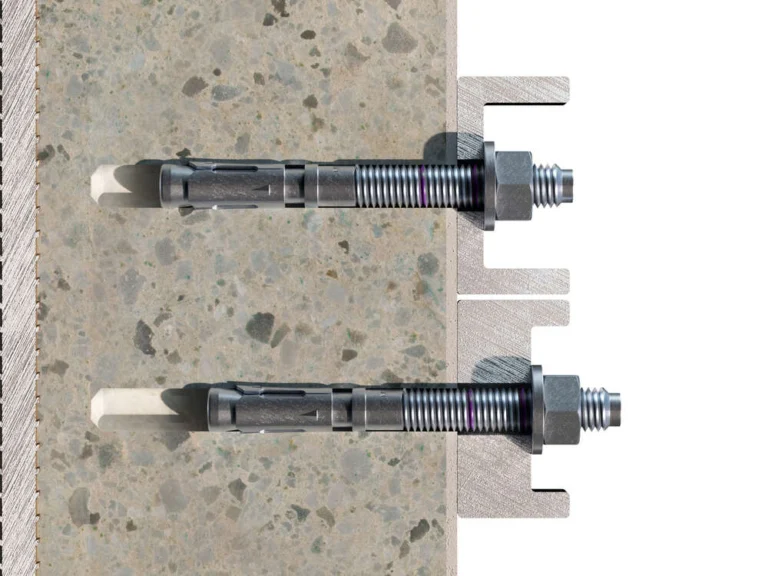

Through bolt anchor for high loads in cracked and non-cracked concrete. It works by controlled torque expansion, zinc plated steel shaft and stainless steel clip, ETE Opt.1 assessed, which ensures its performance in structural fastenings on concrete.
Body material
Select
Ring material
Select ring material
Diameter
Select
Length
Select
View all sizes
| Code | Description | Length (mm) | Diameter | Surf. protect | Max. thickness | UOM | No. pcs | Stock | ||
|---|---|---|---|---|---|---|---|---|---|---|
| AP08050 | Bolt anchor MTP M8x50 | 50 | M8 | Zn | 2 | piece | 100 | Sign up or log in to view availability and prices. | ||
| AP08075 | Bolt anchor MTP M8x75 | 75 | M8 | Zn | 9 | piece | 100 | Sign up or log in to view availability and prices. | ||
| AP08095 | Bolt anchor MTP M8x95 | 95 | M8 | Zn | 29 | piece | 100 | Sign up or log in to view availability and prices. | ||
| AP08115 | Bolt anchor MTP M8x115 | 115 | M8 | Zn | 49 | piece | 100 | Sign up or log in to view availability and prices. | ||
| AP10090 | Bolt anchor MTP M10x90 | 90 | M10 | Zn | 10 | piece | 100 | Sign up or log in to view availability and prices. | ||
| AP10105 | Bolt anchor MTP M10x105 | 105 | M10 | Zn | 25 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AP10115 | Bolt anchor MTP M10x115 | 115 | M10 | Zn | 35 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AP10135 | Bolt anchor MTP M10x135 | 135 | M10 | Zn | 55 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AP10165 | Bolt anchor MTP M10x165 | 165 | M10 | Zn | 85 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AP10185 | Bolt anchor MTP M10x185 | 185 | M10 | Zn | 105 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AP12080 | Bolt anchor MTP M12x80 | 80 | M12 | Zn | 4 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AP12100 | Bolt anchor MTP M12x100 | 100 | M12 | Zn | 4 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AP12110 | Bolt anchor MTP M12x110 | 110 | M12 | Zn | 14 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AP12120 | Bolt anchor MTP M12x120 | 120 | M12 | Zn | 24 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AP12130 | Bolt anchor MTP M12x130 | 130 | M12 | Zn | 34 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AP12150 | Bolt anchor MTP M12x150 | 150 | M12 | Zn | 54 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AP12180 | Bolt anchor MTP M12x180 | 180 | M12 | Zn | 84 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AP12200 | Bolt anchor MTP M12x200 | 200 | M12 | Zn | 104 | piece | 50 | Sign up or log in to view availability and prices. | ||
| AP16145 | Bolt anchor MTP M16x145 | 145 | M16 | Zn | 28 | piece | 25 | Sign up or log in to view availability and prices. | ||
| AP16175 | Bolt anchor MTP M16x175 | 175 | M16 | Zn | 58 | piece | 25 | Sign up or log in to view availability and prices. | ||
| AP16220 | Bolt anchor MTP M16x220 | 220 | M16 | Zn | 103 | piece | 25 | Sign up or log in to view availability and prices. | ||
| AP16250 | Bolt anchor MTP M16x250 | 250 | M16 | Zn | 133 | piece | 25 | Sign up or log in to view availability and prices. | ||
| AP20170 | Bolt anchor MTP M20x170 | 170 | M20 | Zn | 32 | piece | 20 | Sign up or log in to view availability and prices. | ||
| AP20200 | Bolt anchor MTP M20x200 | 200 | M20 | Zn | 62 | piece | 20 | Sign up or log in to view availability and prices. | ||
| AP24205 | Bolt anchor MTP M24x205 | 205 | M24 | Zn | 35 | piece | 10 | Sign up or log in to view availability and prices. | ||
| AP24235 | Bolt anchor MTP M24x235 | 235 | M24 | Zn | 65 | piece | 10 | Sign up or log in to view availability and prices. | ||
| APA408075 | Bolt anchor MTP-A4 M8x75 | 75 | M8 | 9 | piece | 100 | Sign up or log in to view availability and prices. | |||
| APA408095 | Bolt anchor MTP-A4 M8x95 | 95 | M8 | 29 | piece | 100 | Sign up or log in to view availability and prices. | |||
| APA408115 | Bolt anchor MTP-A4 M8x115 | 115 | M8 | 49 | piece | 100 | Sign up or log in to view availability and prices. | |||
| APA408135 | Bolt anchor MTP-A4 M8x135 | 135 | M8 | 69 | piece | 50 | Sign up or log in to view availability and prices. | |||
| APA410090 | Bolt anchor MTP-A4 M10x90 | 90 | M10 | 10 | piece | 100 | Sign up or log in to view availability and prices. | |||
| APA410105 | Bolt anchor MTP-A4 M10x105 | 105 | M10 | 25 | piece | 50 | Sign up or log in to view availability and prices. | |||
| APA410115 | Bolt anchor MTP-A4 M10x115 | 115 | M10 | 35 | piece | 50 | Sign up or log in to view availability and prices. | |||
| APA410135 | Bolt anchor MTP-A4 M10x135 | 135 | M10 | 55 | piece | 50 | Sign up or log in to view availability and prices. | |||
| APA410165 | Bolt anchor MTP-A4 M10x165 | 165 | M10 | 85 | piece | 50 | Sign up or log in to view availability and prices. | |||
| APA410185 | Bolt anchor MTP-A4 M10x185 | 185 | M10 | 105 | piece | 50 | Sign up or log in to view availability and prices. | |||
| APA412110 | Bolt anchor MTP-A4 M12x110 | 110 | M12 | 14 | piece | 50 | Sign up or log in to view availability and prices. | |||
| APA412120 | Bolt anchor MTP-A4 M12x120 | 120 | M12 | 24 | piece | 50 | Sign up or log in to view availability and prices. | |||
| APA412130 | Bolt anchor MTP-A4 M12x130 | 130 | M12 | 34 | piece | 50 | Sign up or log in to view availability and prices. | |||
| APA412150 | Bolt anchor MTP-A4 M12x150 | 150 | M12 | 54 | piece | 50 | Sign up or log in to view availability and prices. | |||
| APA412180 | Bolt anchor MTP-A4 M12x180 | 180 | M12 | 84 | piece | 50 | Sign up or log in to view availability and prices. | |||
| APA412200 | Bolt anchor MTP-A4 M12x200 | 200 | M12 | 104 | piece | 50 | Sign up or log in to view availability and prices. | |||
| APA416125 | Bolt anchor MTP-A4 M16x125 | 125 | M16 | 8 | piece | 50 | Sign up or log in to view availability and prices. | |||
| APA416145 | Bolt anchor MTP-A4 M16x145 | 145 | M16 | 28 | piece | 25 | Sign up or log in to view availability and prices. | |||
| APA416175 | Bolt anchor MTP-A4 M16x175 | 175 | M16 | 58 | piece | 25 | Sign up or log in to view availability and prices. | |||
| APA416190 | Bolt anchor MTP-A4 M16x190 | 190 | M16 | 73 | piece | 25 | Sign up or log in to view availability and prices. | |||
| APA416220 | Bolt anchor MTP-A4 M16x220 | 220 | M16 | 103 | piece | 20 | Sign up or log in to view availability and prices. | |||
| APA420200 | Bolt anchor MTP-A4 M20x200 | 200 | M20 | 62 | piece | 20 | Sign up or log in to view availability and prices. | |||
| APA420240 | Bolt anchor MTP-A4 M20x240 | 240 | M20 | 102 | piece | 15 | Sign up or log in to view availability and prices. | |||
| APA420285 | Bolt anchor MTP-A4 M20x285 | 285 | M20 | 147 | piece | 10 | Sign up or log in to view availability and prices. | |||
| APX08050 | Bolt anchor MTP-X M8x50 | 50 | M8 | 2 | piece | 100 | Sign up or log in to view availability and prices. | |||
| APX08075 | Bolt anchor MTP-X M8x75 | 75 | M8 | 9 | piece | 100 | Sign up or log in to view availability and prices. | |||
| APX08080 | Bolt anchor MTP-X M8x80 | 80 | M8 | 14 | piece | 100 | Sign up or log in to view availability and prices. | |||
| APX08095 | Bolt anchor MTP-X M8x95 | 95 | M8 | 29 | piece | 100 | Sign up or log in to view availability and prices. | |||
| APX08115 | Bolt anchor MTP-X M8x115 | 115 | M8 | 49 | piece | 100 | Sign up or log in to view availability and prices. | |||
| APX10090 | Bolt anchor MTP-X M10x90 | 90 | M10 | 10 | piece | 100 | Sign up or log in to view availability and prices. | |||
| APX10105 | Bolt anchor MTP-X M10x105 | 105 | M10 | 25 | piece | 50 | Sign up or log in to view availability and prices. | |||
| APX10115 | Bolt anchor MTP-X M10x115 | 115 | M10 | 35 | piece | 50 | Sign up or log in to view availability and prices. | |||
| APX10135 | Bolt anchor MTP-X M10x135 | 135 | M10 | 55 | piece | 50 | Sign up or log in to view availability and prices. | |||
| APX10165 | Bolt anchor MTP-X M10x165 | 165 | M10 | 85 | piece | 50 | Sign up or log in to view availability and prices. | |||
| APX10185 | Bolt anchor MTP-X M10x185 | 185 | M10 | 105 | piece | 50 | Sign up or log in to view availability and prices. | |||
| APX12080 | Bolt anchor MTP-X M12x80 | 80 | M12 | 4 | piece | 50 | Sign up or log in to view availability and prices. | |||
| APX12100 | Bolt anchor MTP-X M12x100 | 100 | M12 | 4 | piece | 50 | Sign up or log in to view availability and prices. | |||
| APX12110 | Bolt anchor MTP-X M12x110 | 110 | M12 | 14 | piece | 50 | Sign up or log in to view availability and prices. | |||
| APX12120 | Bolt anchor MTP-X M12x120 | 120 | M12 | 24 | piece | 50 | Sign up or log in to view availability and prices. | |||
| APX12130 | Bolt anchor MTP-X M12x130 | 130 | M12 | 34 | piece | 50 | Sign up or log in to view availability and prices. | |||
| APX12150 | Bolt anchor MTP-X M12x150 | 150 | M12 | 54 | piece | 50 | Sign up or log in to view availability and prices. | |||
| APX12180 | Bolt anchor MTP-X M12x180 | 180 | M12 | 84 | piece | 50 | Sign up or log in to view availability and prices. | |||
| APX12200 | Bolt anchor MTP-X M12x200 | 200 | M12 | 104 | piece | 50 | Sign up or log in to view availability and prices. | |||
| APX12220 | Bolt anchor MTP-X M12x220 | 220 | M12 | 124 | piece | 25 | Sign up or log in to view availability and prices. | |||
| APX12255 | Bolt anchor MTP-X M12x255 | 255 | M12 | 159 | piece | 25 | Sign up or log in to view availability and prices. | |||
| APX16145 | Bolt anchor MTP-X M16x145 | 145 | M16 | 28 | piece | 25 | Sign up or log in to view availability and prices. | |||
| APX16175 | Bolt anchor MTP-X M16x175 | 175 | M16 | 58 | piece | 25 | Sign up or log in to view availability and prices. | |||
| APX16220 | Bolt anchor MTP-X M16x220 | 220 | M16 | 103 | piece | 25 | Sign up or log in to view availability and prices. | |||
| APX16250 | Bolt anchor MTP-X M16x250 | 250 | M16 | 133 | piece | 25 | Sign up or log in to view availability and prices. | |||
| APX20170 | Bolt anchor MTP-X M20x170 | 170 | M20 | 32 | piece | 20 | Sign up or log in to view availability and prices. | |||
| APX20200 | Bolt anchor MTP-X M20x200 | 200 | M20 | 62 | piece | 20 | Sign up or log in to view availability and prices. |
