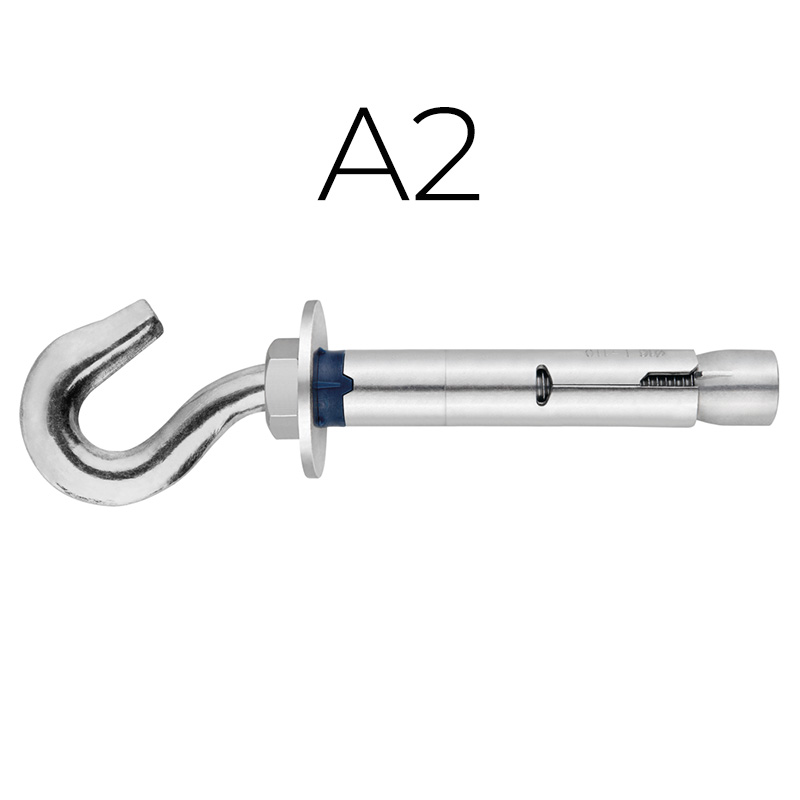

Bolt anchor CH-GF

Sleeve type anchorage with forged hook, which allows the installation of fenced or staked cables. Suitable for fixing medium-load elements in solid materials. It works by means of mechanical expansion by controlled torque and incorporates anti-rotation, which prevents it from rotating during tightening. Made of zinc-plated steel.

Body material

Select
Select
Steel
A2

Ring material

Select ring material
Select
Still
A2

Diameter

Select
Select
M6
M8
M10

Length

Select
Select
45
60
70

View all sizes

Code Description Length (mm) Diameter Surf. protect UOM No. pcs Stock
ACHGFO08C Bolt anchor CH-GF M6x45 45 M6 Zn piece 10 Sign up or log in to view availability and prices.
ACHGFO10C Bolt anchor CH-GF M8x60 60 M8 Zn piece 11 Sign up or log in to view availability and prices.
ACHGFO12C Bolt anchor CH-GF M10x70 70 M10 Zn piece 14 Sign up or log in to view availability and prices.
ACHGA208C Bolt anchor CH-GF A2 M6x45 45 M6 piece 10 Sign up or log in to view availability and prices.
ACHGA210C Bolt anchor CH-GF A2 M8x60 60 M8 piece 11 Sign up or log in to view availability and prices.
ACHGA212C Bolt anchor CH-GF A2 M10x70 70 M10 piece 14 Sign up or log in to view availability and prices.
