Bolt anchor TFA

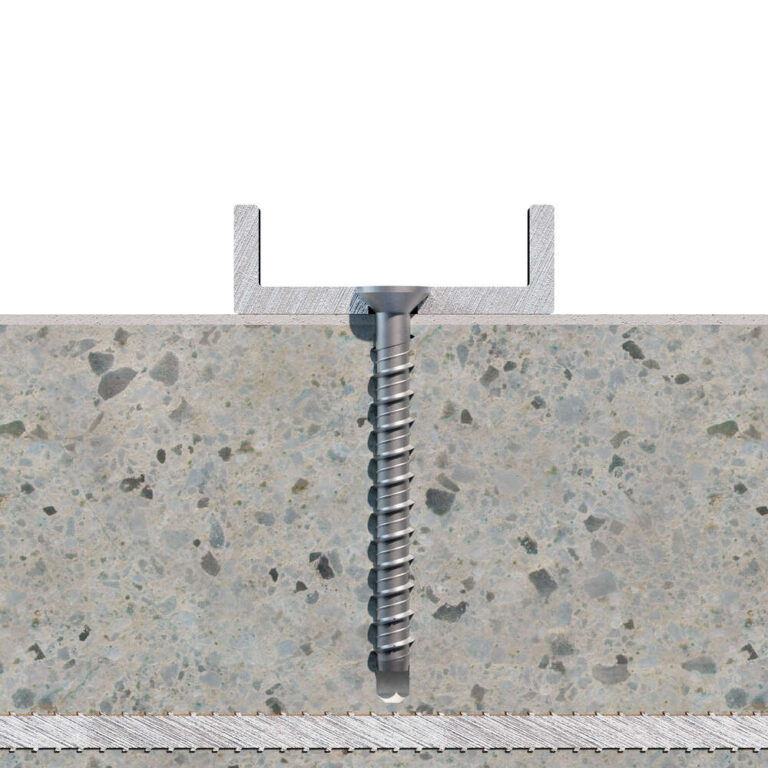

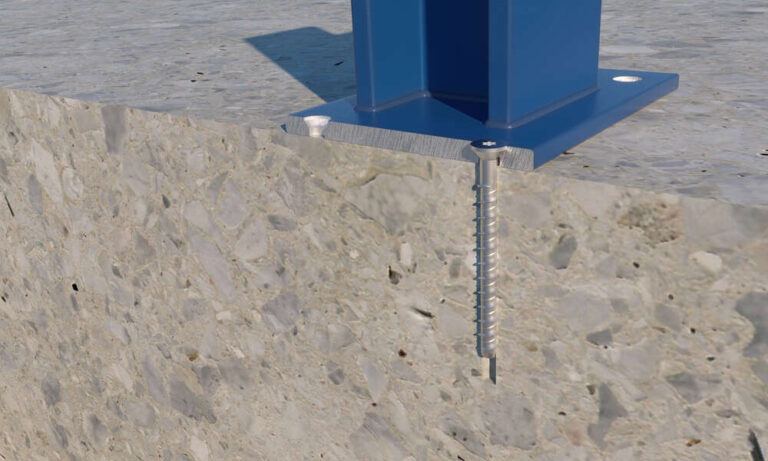

Direct fixing screw with countersunk head, for cracked and non-cracked concrete. Designed for fixing high-load elements. The countersunk head allows the screw to be flush with the surface after installation. Removable and reusable. ETE Opt.1 approved. Made of zinc-plated steel.

Body material

Select
Select
Steel

Diameter

Select
Select
Ø5
Ø6
Ø8
Ø10

Length

Select
Select
40
45
50
60
80
100
120
140

View all sizes

Code Description Length (mm) Diameter Surf. protect Max. thickness UOM No. pcs Stock
TFA05040 Bolt anchor TFA Ø5x40, footprint: TX25 40 Ø5 Zn 5 piece 100 Sign up or log in to view availability and prices.
TFA05060 Bolt anchor TFA Ø5x60, footprint: TX25 60 Ø5 Zn 15 piece 100 Sign up or log in to view availability and prices.
TFA05080 Bolt anchor TFA Ø5x80, footprint: TX25 80 Ø5 Zn 35 piece 50 Sign up or log in to view availability and prices.
TFA05100 Bolt anchor TFA Ø5x100, footprint: TX25 100 Ø5 Zn 55 piece 50 Sign up or log in to view availability and prices.
TFA06045 Bolt anchor TFA Ø6x45, footprint: TX30 45 Ø6 Zn 10 piece 100 Sign up or log in to view availability and prices.
TFA06050 Bolt anchor TFA Ø6x50, footprint: TX30 50 Ø6 Zn 15 piece 100 Sign up or log in to view availability and prices.
TFA06060 Bolt anchor TFA Ø6x60, footprint: TX30 60 Ø6 Zn 5 piece 100 Sign up or log in to view availability and prices.
TFA06080 Bolt anchor TFA Ø6x80, footprint: TX30 80 Ø6 Zn 25 piece 100 Sign up or log in to view availability and prices.
TFA06100 Bolt anchor TFA Ø6x100, footprint: TX30 100 Ø6 Zn 45 piece 100 Sign up or log in to view availability and prices.
TFA06120 Bolt anchor TFA Ø6x120, footprint: TX30 120 Ø6 Zn 65 piece 100 Sign up or log in to view availability and prices.
TFA06140 Bolt anchor TFA Ø6x140, footprint: TX30 140 Ø6 Zn 85 piece 100 Sign up or log in to view availability and prices.
TFA08060 Bolt anchor TFA Ø8x60, footprint: TX45 60 Ø8 Zn 10 piece 50 Sign up or log in to view availability and prices.
TFA08080 Bolt anchor TFA Ø8x80, footprint: TX45 80 Ø8 Zn 15 piece 25 Sign up or log in to view availability and prices.
TFA08100 Bolt anchor TFA Ø8x100, footprint: TX45 100 Ø8 Zn 35 piece 25 Sign up or log in to view availability and prices.
TFA08120 Bolt anchor TFA Ø8x120, footprint: TX45 120 Ø8 Zn 55 piece 25 Sign up or log in to view availability and prices.
TFA10100 Bolt anchor TFA Ø10x100, footprint: TX50 100 Ø10 Zn 15 piece 25 Sign up or log in to view availability and prices.
TFA10120 Bolt anchor TFA Ø10x120, footprint: TX50 120 Ø10 Zn 35 piece 25 Sign up or log in to view availability and prices.
