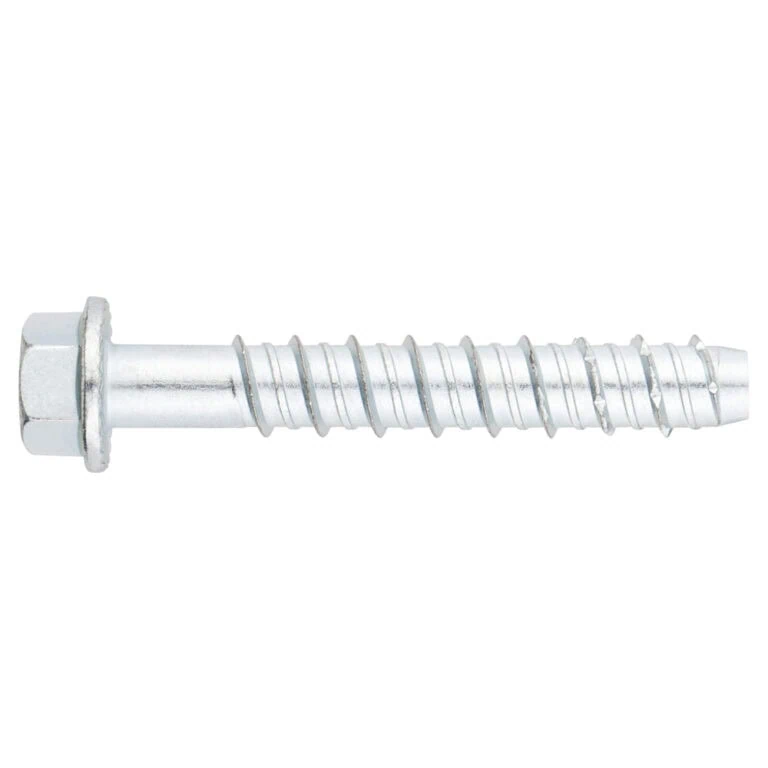

Bolt anchor TFE

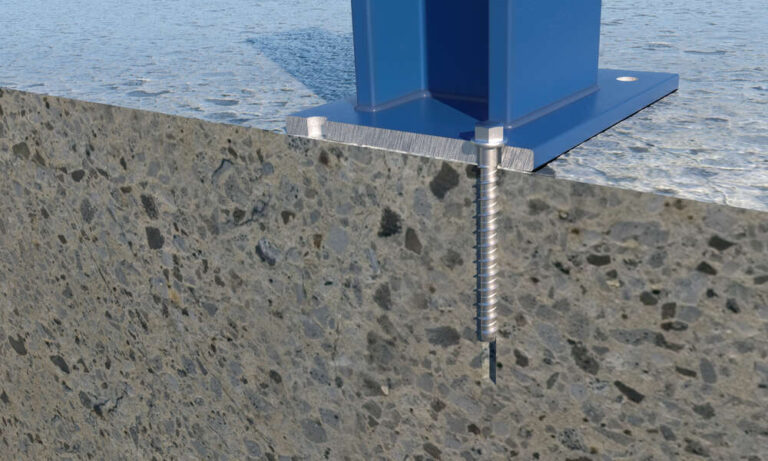

Direct fixing screw anchor with hexagon head for cracked and non-cracked concrete. Designed for fixing elements with high loads. Removable and reusable. ETE Opt.1 approved. Made of zinc plated steel.
Body material
Select
Diameter
Select
Length
Select
View all sizes
| Code | Description | Length (mm) | Diameter | Surf. protect | Max. thickness | UOM | No. pcs | Stock | ||
|---|---|---|---|---|---|---|---|---|---|---|
| TFE05040 | Bolt anchor TFE Ø5x40, footprint: 8 | 40 | Ø5 | Zn | 5 | piece | 100 | Sign up or log in to view availability and prices. | ||
| TFE05050 | Bolt anchor TFE Ø5x50, footprint: 8 | 50 | Ø5 | Zn | 5 | piece | 100 | Sign up or log in to view availability and prices. | ||
| TFE05060 | Bolt anchor TFE Ø5x60, footprint: 8 | 60 | Ø5 | Zn | 15 | piece | 100 | Sign up or log in to view availability and prices. | ||
| TFE05080 | Bolt anchor TFE Ø5x80, footprint: 8 | 80 | Ø5 | Zn | 35 | piece | 50 | Sign up or log in to view availability and prices. | ||
| TFE05100 | Bolt anchor TFE Ø5x100, footprint: 8 | 100 | Ø5 | Zn | 55 | piece | 50 | Sign up or log in to view availability and prices. | ||
| TFE06035 | Bolt anchor TFE Ø6x35, footprint: 10 | 35 | Ø6 | Zn | piece | 100 | Sign up or log in to view availability and prices. | |||
| TFE06040 | Bolt anchor TFE Ø6x40, footprint: 10 | 40 | Ø6 | Zn | 5 | piece | 100 | Sign up or log in to view availability and prices. | ||
| TFE06045 | Bolt anchor TFE Ø6x45, footprint: 10 | 45 | Ø6 | Zn | 10 | piece | 100 | Sign up or log in to view availability and prices. | ||
| TFE06050 | Bolt anchor TFE Ø6x50, footprint: 10 | 50 | Ø6 | Zn | 15 | piece | 100 | Sign up or log in to view availability and prices. | ||
| TFE06060 | Bolt anchor TFE Ø6x60, footprint: 10 | 60 | Ø6 | Zn | 5 | piece | 100 | Sign up or log in to view availability and prices. | ||
| TFE06070 | Bolt anchor TFE Ø6x70, footprint: 10 | 70 | Ø6 | Zn | 15 | piece | 50 | Sign up or log in to view availability and prices. | ||
| TFE06080 | Bolt anchor TFE Ø6x80, footprint: 10 | 80 | Ø6 | Zn | 25 | piece | 50 | Sign up or log in to view availability and prices. | ||
| TFE06100 | Bolt anchor TFE Ø6x100, footprint: 10 | 100 | Ø6 | Zn | 45 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE06120 | Bolt anchor TFE Ø6x120, footprint: 10 | 120 | Ø6 | Zn | 65 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE08055 | Bolt anchor TFE Ø8x55, footprint: 13 | 55 | Ø8 | Zn | 5 | piece | 50 | Sign up or log in to view availability and prices. | ||
| TFE08060 | Bolt anchor TFE Ø8x60, footprint: 13 | 60 | Ø8 | Zn | 10 | piece | 50 | Sign up or log in to view availability and prices. | ||
| TFE08070 | Bolt anchor TFE Ø8x70, footprint: 13 | 70 | Ø8 | Zn | 5 | piece | 50 | Sign up or log in to view availability and prices. | ||
| TFE08075 | Bolt anchor TFE Ø8x75, footprint: 13 | 75 | Ø8 | Zn | 10 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE08080 | Bolt anchor TFE Ø8x80, footprint: 13 | 80 | Ø8 | Zn | 15 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE08090 | Bolt anchor TFE Ø8x90, footprint: 13 | 90 | Ø8 | Zn | 25 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE08100 | Bolt anchor TFE Ø8x100, footprint: 13 | 100 | Ø8 | Zn | 35 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE08110 | Bolt anchor TFE Ø8x110, footprint: 13 | 110 | Ø8 | Zn | 45 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE08120 | Bolt anchor TFE Ø8x120, footprint: 13 | 120 | Ø8 | Zn | 55 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE08140 | Bolt anchor TFE Ø8x140, footprint: 13 | 140 | Ø8 | Zn | 75 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE10060 | Bolt anchor TFE Ø10x60, footprint: 15 | 60 | Ø10 | Zn | 5 | piece | 50 | Sign up or log in to view availability and prices. | ||
| TFE10070 | Bolt anchor TFE Ø10x70, footprint: 15 | 70 | Ø10 | Zn | 15 | piece | 50 | Sign up or log in to view availability and prices. | ||
| TFE10080 | Bolt anchor TFE Ø10x80, footprint: 15 | 80 | Ø10 | Zn | 25 | piece | 50 | Sign up or log in to view availability and prices. | ||
| TFE10090 | Bolt anchor TFE Ø10x90, footprint: 15 | 90 | Ø10 | Zn | 5 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE10100 | Bolt anchor TFE Ø10x100, footprint: 15 | 100 | Ø10 | Zn | 15 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE10120 | Bolt anchor TFE Ø10x120, footprint: 15 | 120 | Ø10 | Zn | 35 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE10140 | Bolt anchor TFE Ø10x140, footprint: 15 | 140 | Ø10 | Zn | 55 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE10160 | Bolt anchor TFE Ø10x160, footprint: 15 | 160 | Ø10 | Zn | 75 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE10180 | Bolt anchor TFE Ø10x180, footprint: 15 | 180 | Ø10 | Zn | 95 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE12080 | Bolt anchor TFE Ø12x80, footprint: 18 | 80 | Ø12 | Zn | 5 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE12090 | Bolt anchor TFE Ø12x90, footprint: 18 | 90 | Ø12 | Zn | 15 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE12100 | Bolt anchor TFE Ø12x100, footprint: 18 | 100 | Ø12 | Zn | 25 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE12110 | Bolt anchor TFE Ø12x110, footprint: 18 | 110 | Ø12 | Zn | 5 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE12130 | Bolt anchor TFE Ø12x130, footprint: 18 | 130 | Ø12 | Zn | 25 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE12150 | Bolt anchor TFE Ø12x150, footprint: 18 | 150 | Ø12 | Zn | 45 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE14080 | Bolt anchor TFE Ø14x80, footprint: 21 | 80 | Ø14 | Zn | 5 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE14100 | Bolt anchor TFE Ø14x100, footprint: 21 | 100 | Ø14 | Zn | 25 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE14110 | Bolt anchor TFE Ø14x110, footprint: 21 | 110 | Ø14 | Zn | 35 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE14120 | Bolt anchor TFE Ø14x120, footprint: 21 | 120 | Ø14 | Zn | 5 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE14130 | Bolt anchor TFE Ø14x130, footprint: 21 | 130 | Ø14 | Zn | 15 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE14140 | Bolt anchor TFE Ø14x140, footprint: 21 | 140 | Ø14 | Zn | 25 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE14160 | Bolt anchor TFE Ø14x160, footprint: 21 | 160 | Ø14 | Zn | 45 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE16100 | Bolt anchor TFE Ø16x100, footprint: | 100 | Ø16 | Zn | 20 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE16150 | Bolt anchor TFE Ø16x150, footprint: | 150 | Ø16 | Zn | 30 | piece | 25 | Sign up or log in to view availability and prices. | ||
| TFE18100 | Bolt anchor TFE Ø18x100, footprint: 24 | 100 | Ø18 | Zn | 10 | piece | 20 | Sign up or log in to view availability and prices. | ||
| TFE18130 | Bolt anchor TFE Ø18x130, footprint: 24 | 130 | Ø18 | Zn | 40 | piece | 20 | Sign up or log in to view availability and prices. | ||
| TFE18160 | Bolt anchor TFE Ø18x160, footprint: 24 | 160 | Ø18 | Zn | 20 | piece | 15 | Sign up or log in to view availability and prices. | ||
| TFE18180 | Bolt anchor TFE Ø18x180, footprint: 24 | 180 | Ø18 | Zn | 40 | piece | 15 | Sign up or log in to view availability and prices. | ||
| TFE18200 | Bolt anchor TFE Ø18x200, footprint: 24 | 200 | Ø18 | Zn | 60 | piece | 10 | Sign up or log in to view availability and prices. |
