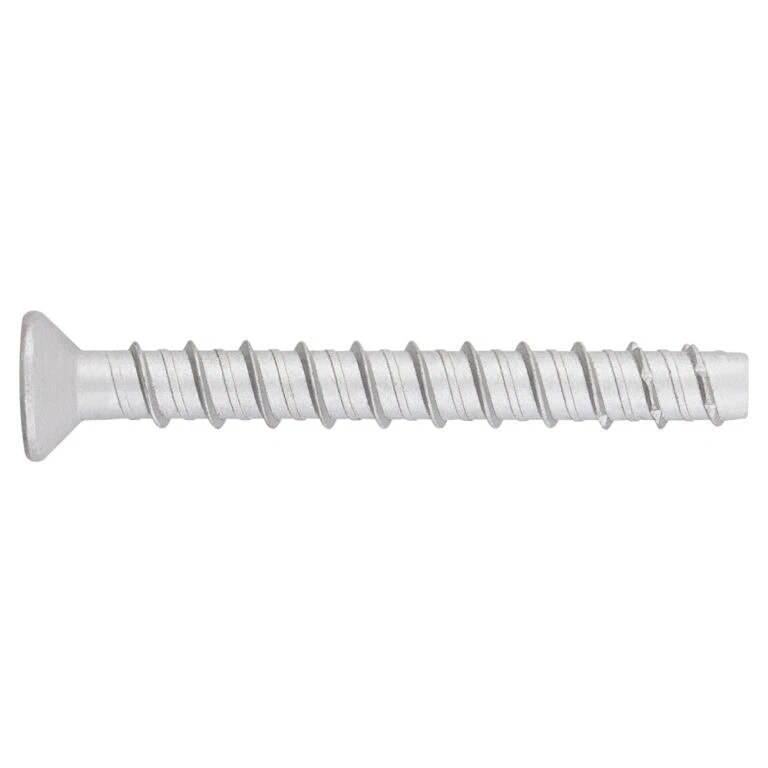

Bolt anchor THA

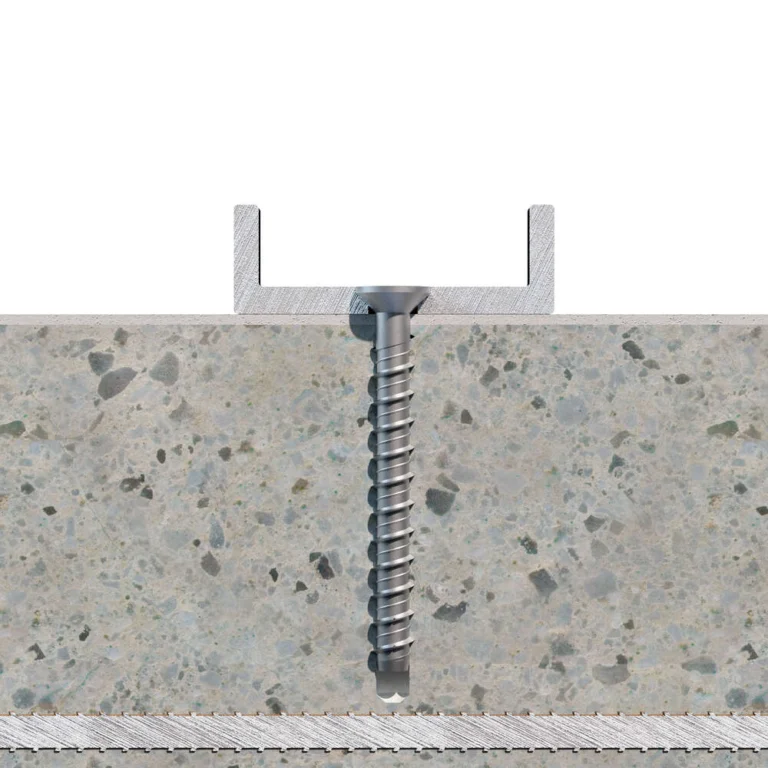

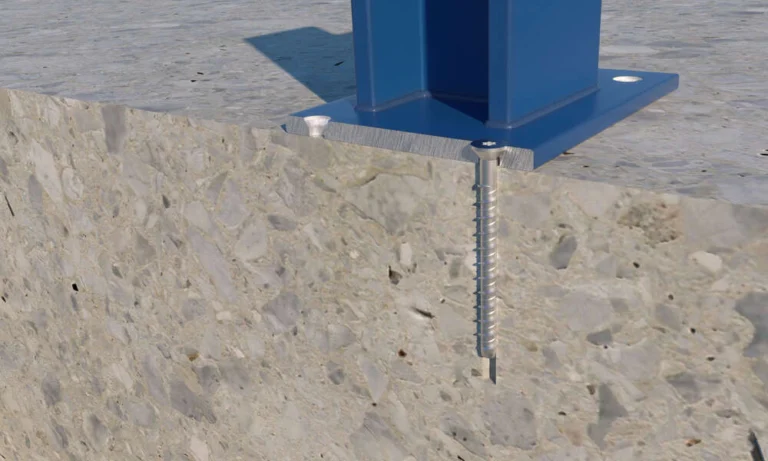

Direct fixing screw anchor with countersunk head. For high loads in cracked and non-cracked concrete. Removable and reusable. ETE Opt.1 approved. Made of ATLANTIS C3-H coated steel.

Body material

Select
Select
Steel

Diameter

Select
Select
Ø5
Ø6
Ø8
Ø10

Length

Select
Select
40
45
50
60
80
100
120
140

View all sizes

Code Description Length (mm) Diameter Surf. protect Max. thickness UOM No. pcs Stock
THA05040 Bolt anchor THA Ø5x40, footprint: TX25 40 Ø5 ATLANTIS C3-H 5 piece 100 Sign up or log in to view availability and prices.
THA05060 Bolt anchor THA Ø5x60, footprint: TX25 60 Ø5 ATLANTIS C3-H 15 piece 100 Sign up or log in to view availability and prices.
THA05080 Bolt anchor THA Ø5x80, footprint: TX25 80 Ø5 ATLANTIS C3-H 35 piece 50 Sign up or log in to view availability and prices.
THA05100 Bolt anchor THA Ø5x100, footprint: TX25 100 Ø5 ATLANTIS C3-H 55 piece 50 Sign up or log in to view availability and prices.
THA06045 Bolt anchor THA Ø6x45, footprint: TX30 45 Ø6 ATLANTIS C3-H 10 piece 100 Sign up or log in to view availability and prices.
THA06050 Bolt anchor THA Ø6x50, footprint: TX30 50 Ø6 ATLANTIS C3-H 15 piece 100 Sign up or log in to view availability and prices.
THA06060 Bolt anchor THA Ø6x60, footprint: TX30 60 Ø6 ATLANTIS C3-H 5 piece 100 Sign up or log in to view availability and prices.
THA06080 Bolt anchor THA Ø6x80, footprint: TX30 80 Ø6 ATLANTIS C3-H 25 piece 100 Sign up or log in to view availability and prices.
THA06100 Bolt anchor THA Ø6x100, footprint: TX30 100 Ø6 ATLANTIS C3-H 45 piece 100 Sign up or log in to view availability and prices.
THA06120 Bolt anchor THA Ø6x120, footprint: TX30 120 Ø6 ATLANTIS C3-H 65 piece 100 Sign up or log in to view availability and prices.
THA06140 Bolt anchor THA Ø6x140, footprint: TX30 140 Ø6 ATLANTIS C3-H 85 piece 100 Sign up or log in to view availability and prices.
THA08060 Bolt anchor THA Ø8x60, footprint: TX45 60 Ø8 ATLANTIS C3-H 10 piece 50 Sign up or log in to view availability and prices.
THA08080 Bolt anchor THA Ø8x80, footprint: TX45 80 Ø8 ATLANTIS C3-H 15 piece 25 Sign up or log in to view availability and prices.
THA08100 Bolt anchor THA Ø8x100, footprint: TX45 100 Ø8 ATLANTIS C3-H 35 piece 25 Sign up or log in to view availability and prices.
THA08120 Bolt anchor THA Ø8x120, footprint: TX45 120 Ø8 ATLANTIS C3-H 55 piece 25 Sign up or log in to view availability and prices.
THA10100 Bolt anchor THA Ø10x100, footprint: TX50 100 Ø10 ATLANTIS C3-H 15 piece 25 Sign up or log in to view availability and prices.
THA10120 Bolt anchor THA Ø10x120, footprint: TX50 120 Ø10 ATLANTIS C3-H 35 piece 25 Sign up or log in to view availability and prices.
